Wall connection set, double-sided, for corner mounting, duct height 120 mm, FS
Item no. 7218142 | EAN 4012197310660
- Product description
-

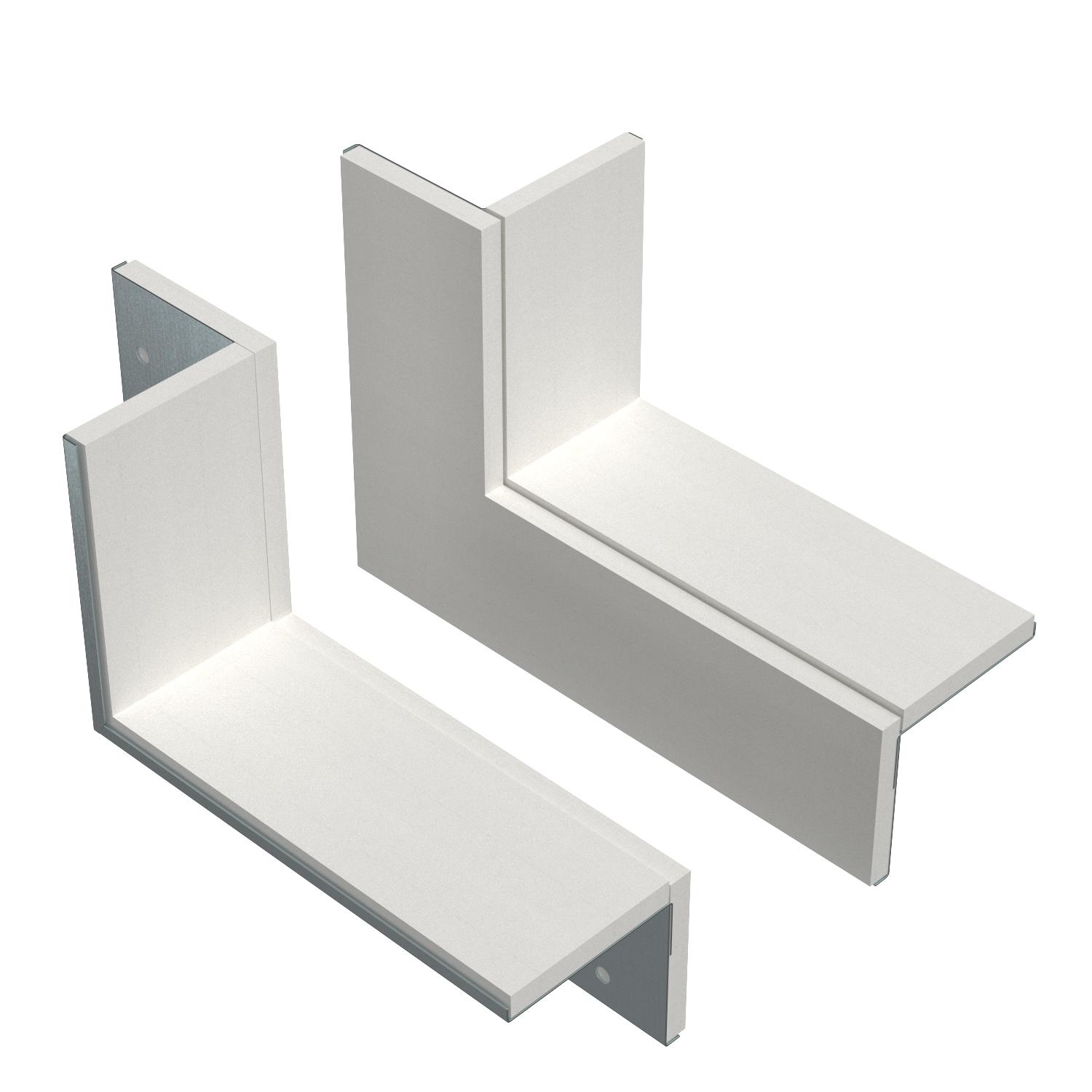

Product descriptionWall connection collar, 2-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations in room corners. Set consisting of 2 opposing components, suitable for ceiling or wall mounting of the installation duct.
-
- Technical data
-
Technical data

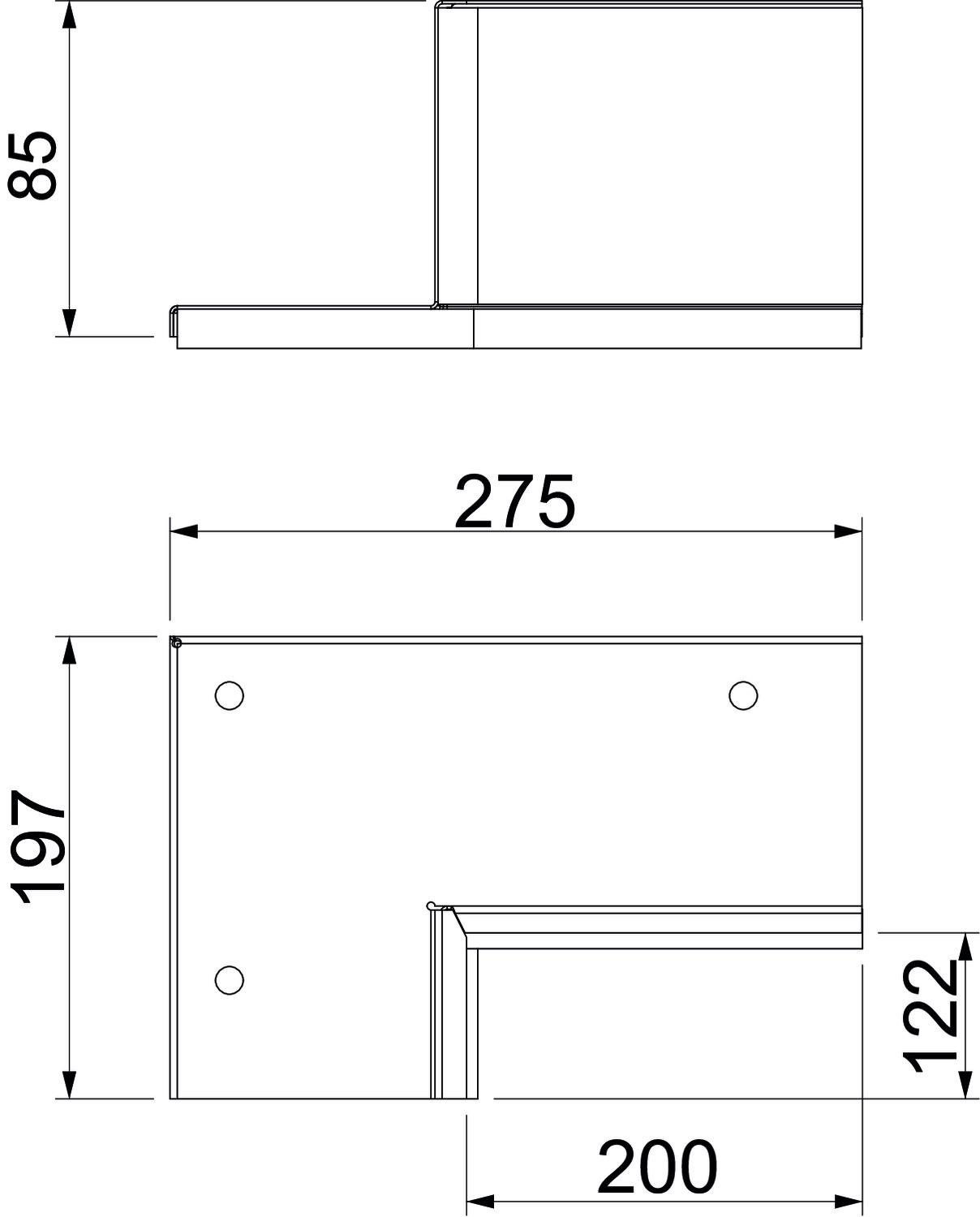

Accessories yes CO2 Footprint (GWP) Cradle-to-Gate 4,524 kg CO2e / 1 Piece Colour zinc Dimension 85x275x197 Dimension B 275 mm Dimension b 200 mm Dimension d 122 mm Dimension H 197 mm Material Steel Spare part no Surface Strip galvanized Type of accessory Wall connection collar - All types
- Downloads
-
Data sheet PLM CC 1220 FS / 7218142 , 0.16MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM CC 1220 FS / 7218142 , 0.11MB , pdfDeclaration of performance PLM CC 1220 FS / 7218142 , 0.78MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfNo invitation to tender text is available for this product.
