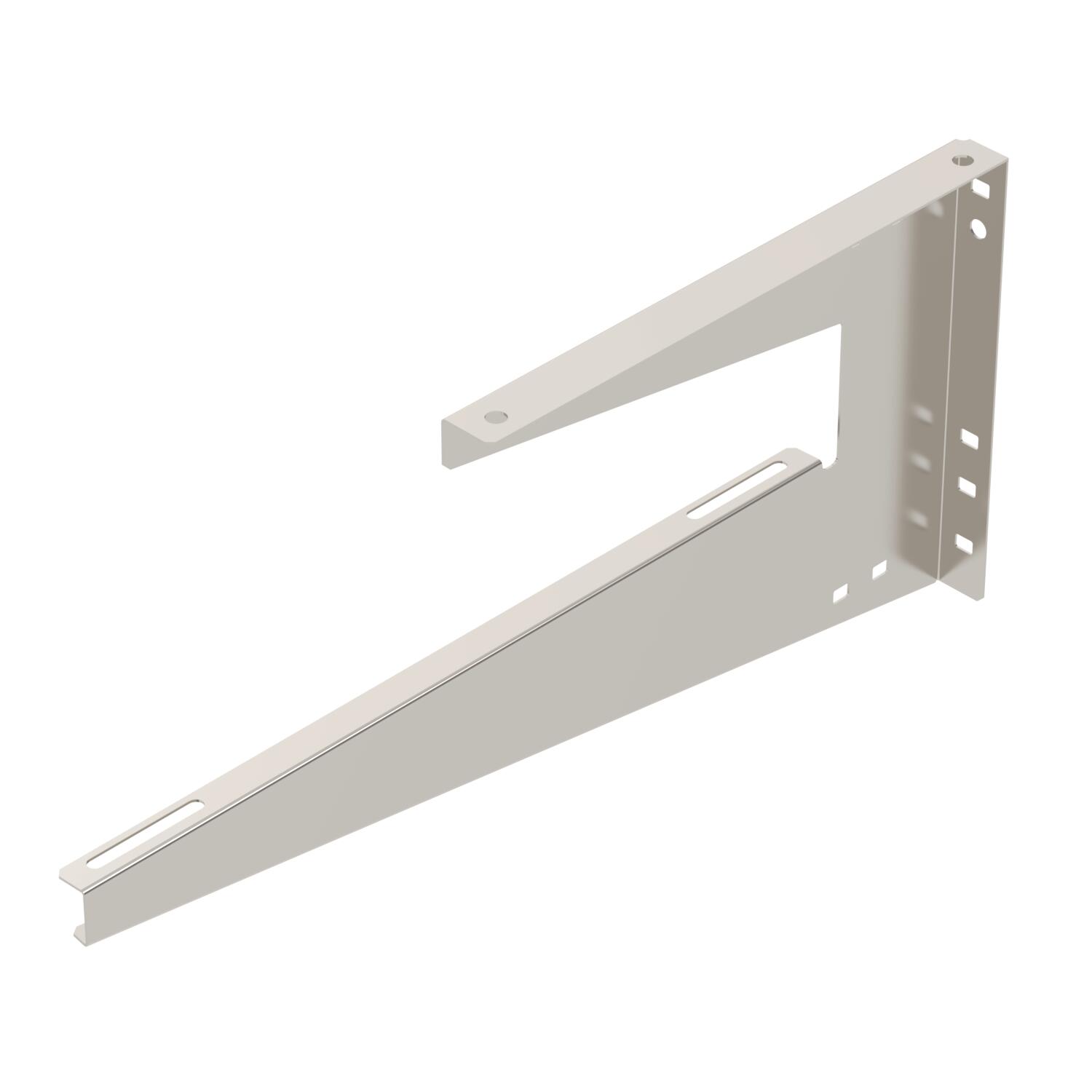

Wall and ceiling bracket A2

Item no. 6363750 | EAN 4012196862313

7 mm
stainless steel
Product description
Product description
Wall and ceiling clamp for universal structural fastening.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Adjustable no
Colour stainless steel

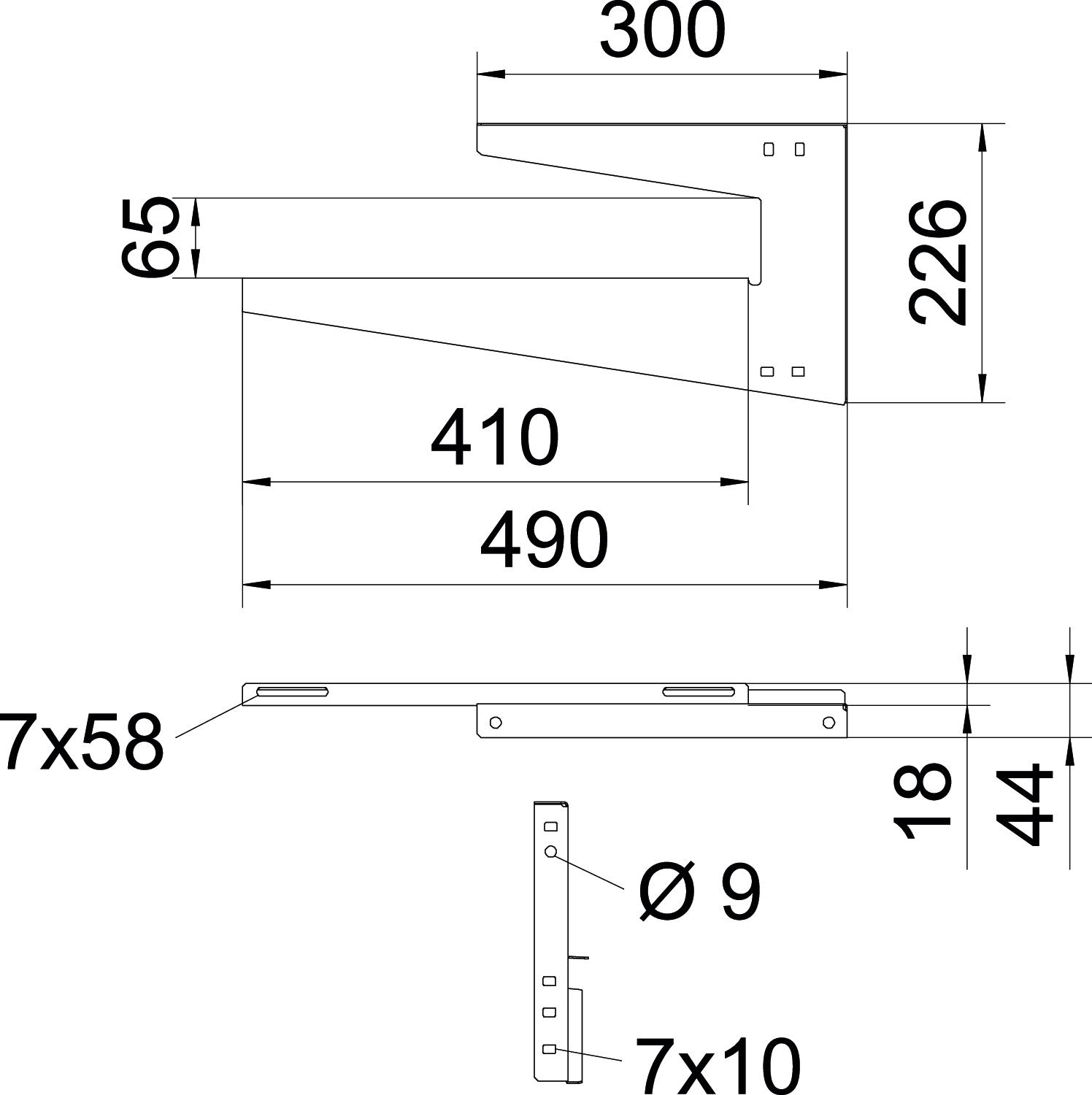

Dimension B400mm
Dimension A 300 mm
Dimension B 410 mm
Dimension H 226 mm
Dimension H1 (mm) 65
Dimension L 490 mm
F in kN ceiling 0,12 kN
F in kN wall 0,12 kN
for width min. 400
Height 226 mm
Hole diameter 7 mm
Length 490 mm
Maintain electrical functions no
Material Stainless steel
Material thickness 1,25 mm
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray yes
Suitable for metric threaded rod 8
Surface Bright, treated
Tray fastening Screw-on
Version for Suspension bracket (C clamp)
Width 410 mm
All types

All types

Types Width Height F in kN ceiling F in kN wall Hole diameter Colour Item no.
WDB L 50 A2 60 mm 170 mm 0.4 kN 0.4 kN 7 mm stainless steel 6363740
WDB L 100 A2 110 mm 179 mm 0.25 kN 0.25 kN 7 mm stainless steel 6363742
WDB L 150 A2 160 mm 186 mm 0.22 kN 0.22 kN 7 mm stainless steel 6363744
WDB L 200 A2 210 mm 194 mm 0.3 kN 0.3 kN 7 mm stainless steel 6363746
WDB L 300 A2 310 mm 210 mm 0.2 kN 0.2 kN 7 mm stainless steel 6363748
WDB L 400 A2 410 mm 226 mm 0.12 kN 0.12 kN 7 mm stainless steel 6363750
Accessories

Mounting accessories

Products Types Item no.
Truss-head bolt with flange nut A2 Truss-head bolt with flange nut A2 FRSB 6x12 A2 6406138
