Suspension bracket, tunnel

Item no. 6419664 | EAN 4012197348809

Product description

Product description

Suspension bracket for wall mounting of cable trays, mesh cable trays and cable ladders specifically for tunnel construction. Tested to DIN 4102-12.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	2,7414 kg CO2e / 1 Piece
Colour	stainless steel
Dimension	B210mm
Dimension A	40 mm
Dimension B	210 mm
Dimension H	105 mm
F in kN	3 kN

Height	105 mm
Maintain electrical functions	yes
Material	Stainless steel
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	yes
Width	210 mm

All types

All types

Types		Item no.
AHW-T 100 VA4529		6419660
AHW-T 150 VA4529		6419662
AHW-T 200 VA4529		6419664
AHW-T 250 VA4529		6419667
AHW-T 300 VA4529		6419669
AHW-T 350 VA4529		6419670
AHW-T 100 VA4547		6419675
AHW-T 150 VA4547		6419677
AHW-T 200 VA4547		6419679
AHW-T 250 VA4547		6419681
AHW-T 300 VA4547		6419683
AHW-T 350 VA4547		6419685

Downloads

Data sheet AHW-T 200 VA4529 / 6419664 , 0.20MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Brochure Teste routing systems for cable systems , 2.00MB , pdf

Catalogue Safety and protection installations – fire-tested routing systems , 19.95MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity AHW-T 200 VA4529 / 6419664 , 0.11MB , pdf

UK Declaration of Conformity AHW-T 200 VA4529 / 6419664 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

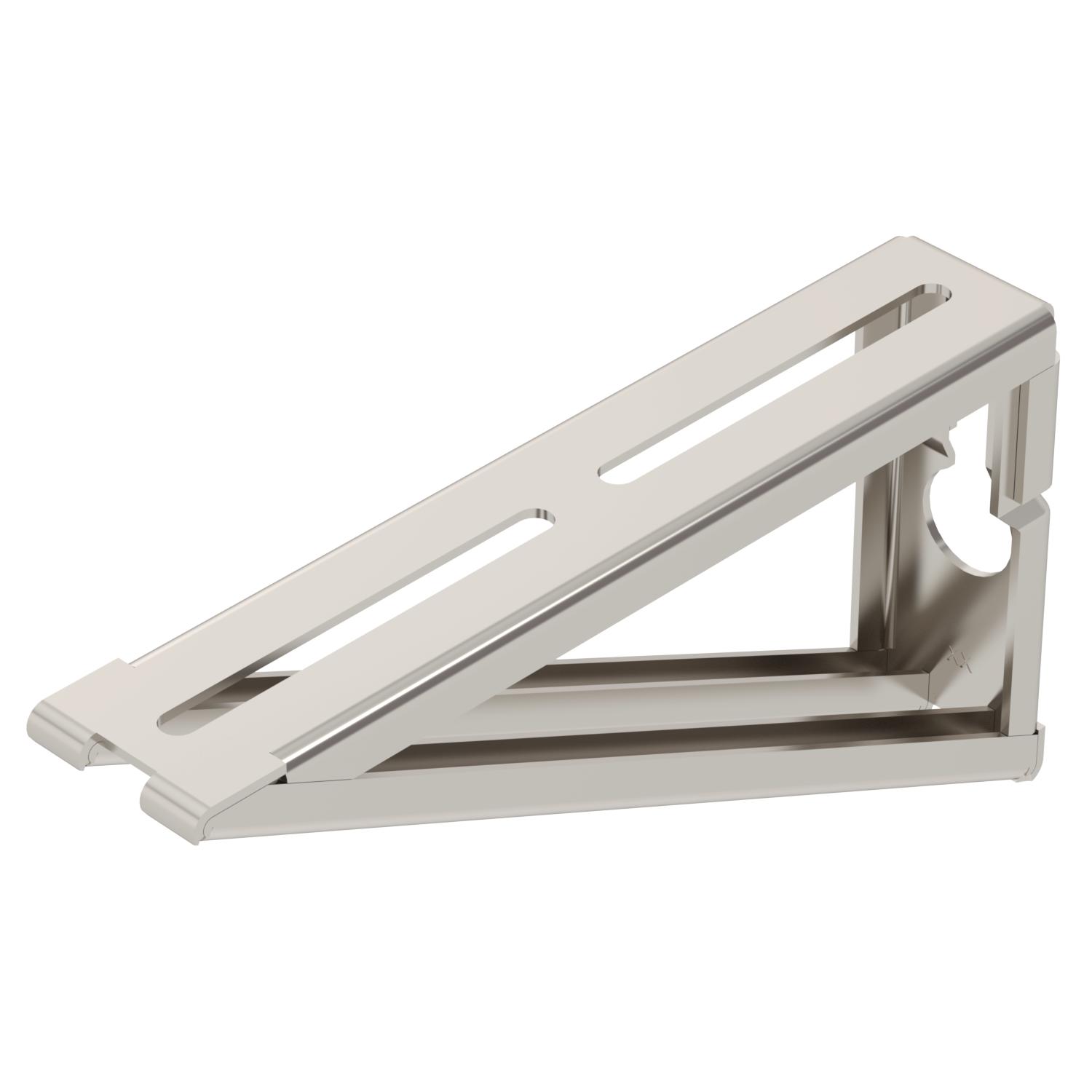

Product graphic AHW-T 200 VA4529 / 6419664, 57.93 kB, jpg

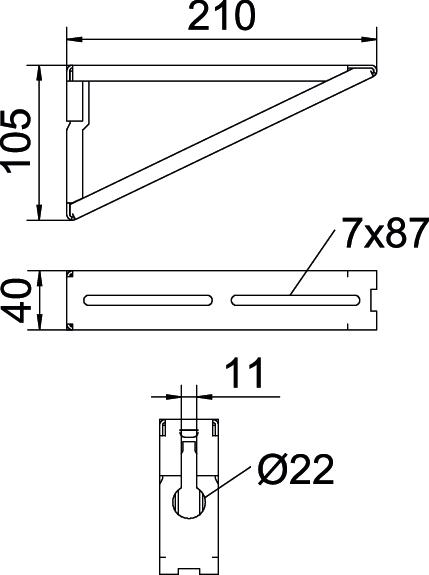

Scale drawing AHW-T 200 VA4529 / 6419664, 22.54 kB, jpg
