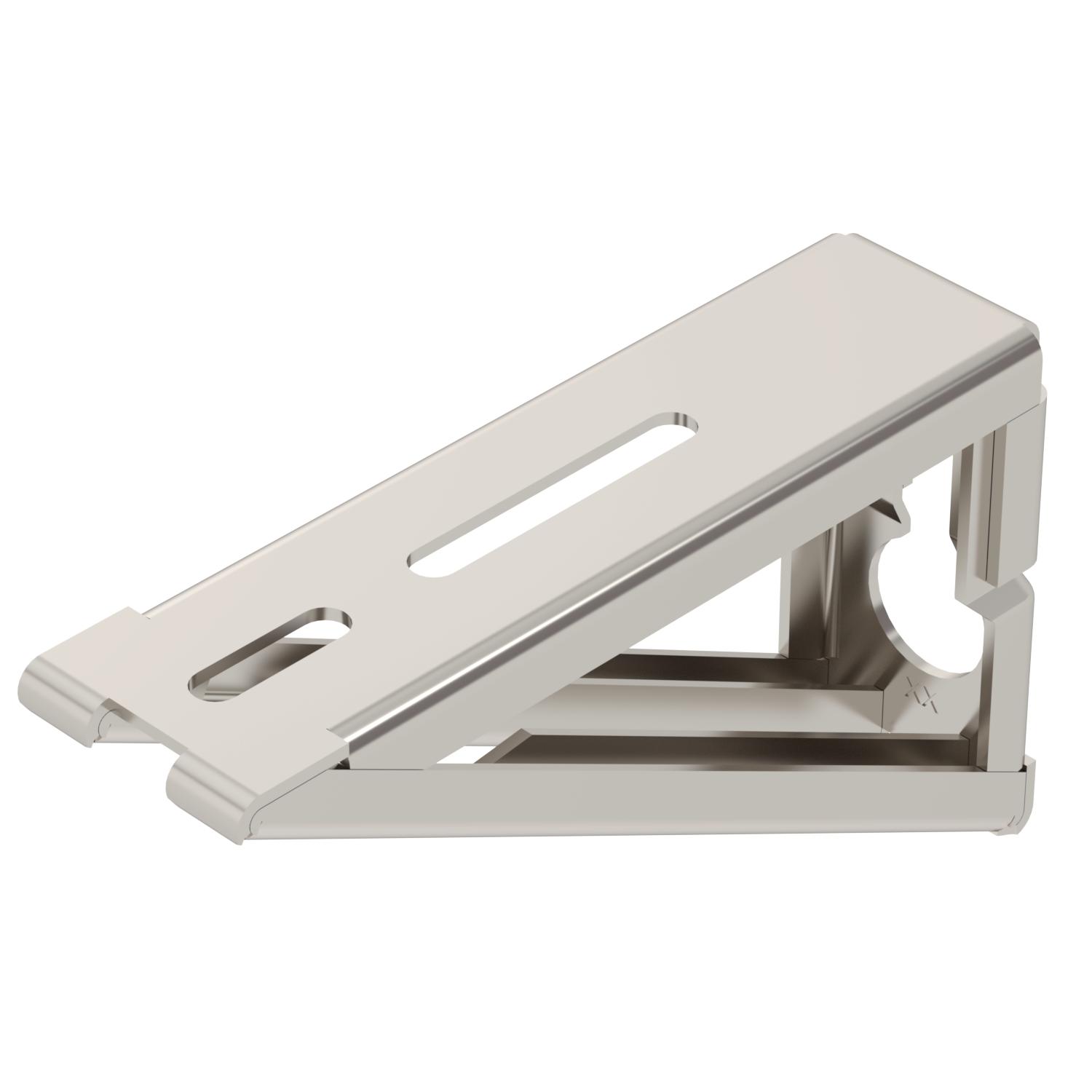

Suspension bracket, tunnel
Item no. 6419662 | EAN 4012197348779
- Product description
-
Product descriptionSuspension bracket for wall mounting of cable trays, mesh cable trays and cable ladders specifically for tunnel construction. Tested to DIN 4102-12.
-
- Technical data
-
Technical data

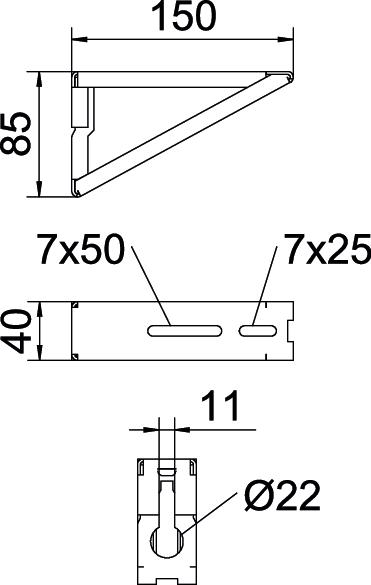

CO2 Footprint (GWP) Cradle-to-Gate 2,004 kg CO2e / 1 Piece Colour stainless steel Dimension B150mm Dimension A 40 mm Dimension B 150 mm Dimension H 85 mm F in kN 4 kN Height 85 mm Maintain electrical functions yes Material Stainless steel Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Width 150 mm - All types
- Downloads
-
Data sheet AHW-T 150 VA4529 / 6419662 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AHW-T 150 VA4529 / 6419662 , 0.11MB , pdfUK Declaration of Conformity AHW-T 150 VA4529 / 6419662 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
