Slide nut for slotted steel strap. 30 | | | M4

morepic-1

morepic-2

Slide nut for slotted steel strap.

Item no. 1146335 | EAN 4012195054375

Item no. / Types	1146335 / T 6012 M4 G

Length	30 mm

Thread	M4

Product description

Product description

To fasten components to slotted steel straps 5050.
With M4 thread.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0185 kg CO2e / 1 Piece
Dimension	M4x30mm
Dimension B	16 mm
Dimension H	5 mm
Dimension L	32 mm
Dimension t	2 mm

Length	30 mm
Material	Steel
Surface	Electrogalvanized
Thread	M4
Version for	No screw

All types

All types

Types	Length	Thread	Item no.
T 6012 M4 G	30 mm	M4	1146335

Downloads

Data sheet T 6012 M4 G / 1146335 , 0.16MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

REACH Declaration of conformity T 6012 M4 G / 1146335 , 0.12MB , pdf

Download

RoHS Declaration of conformity T 6012 M4 G / 1146335 , 0.13MB , pdf

Download

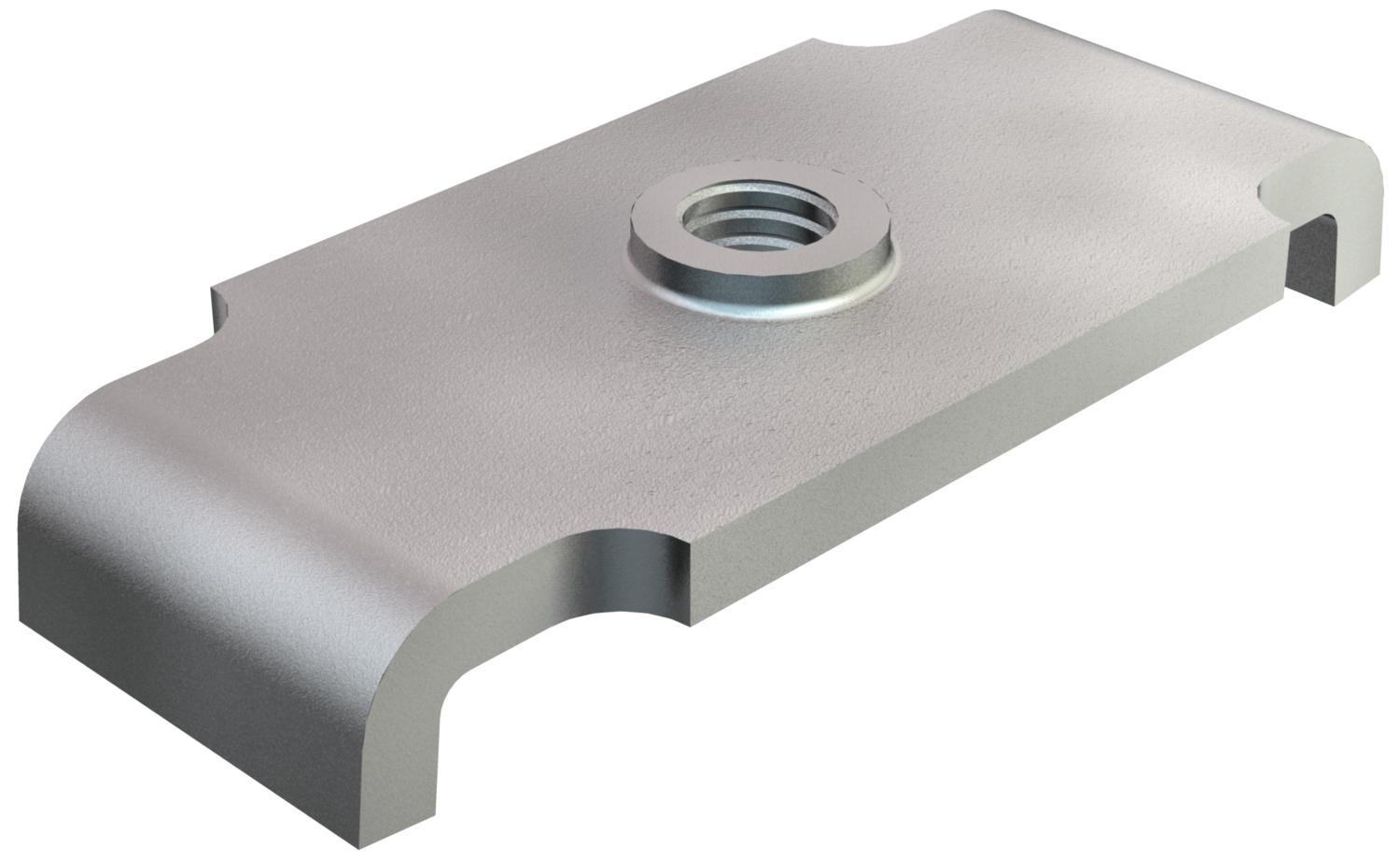

Product graphic T 6012 M4 G / 1146335, 76.54 kB, jpg

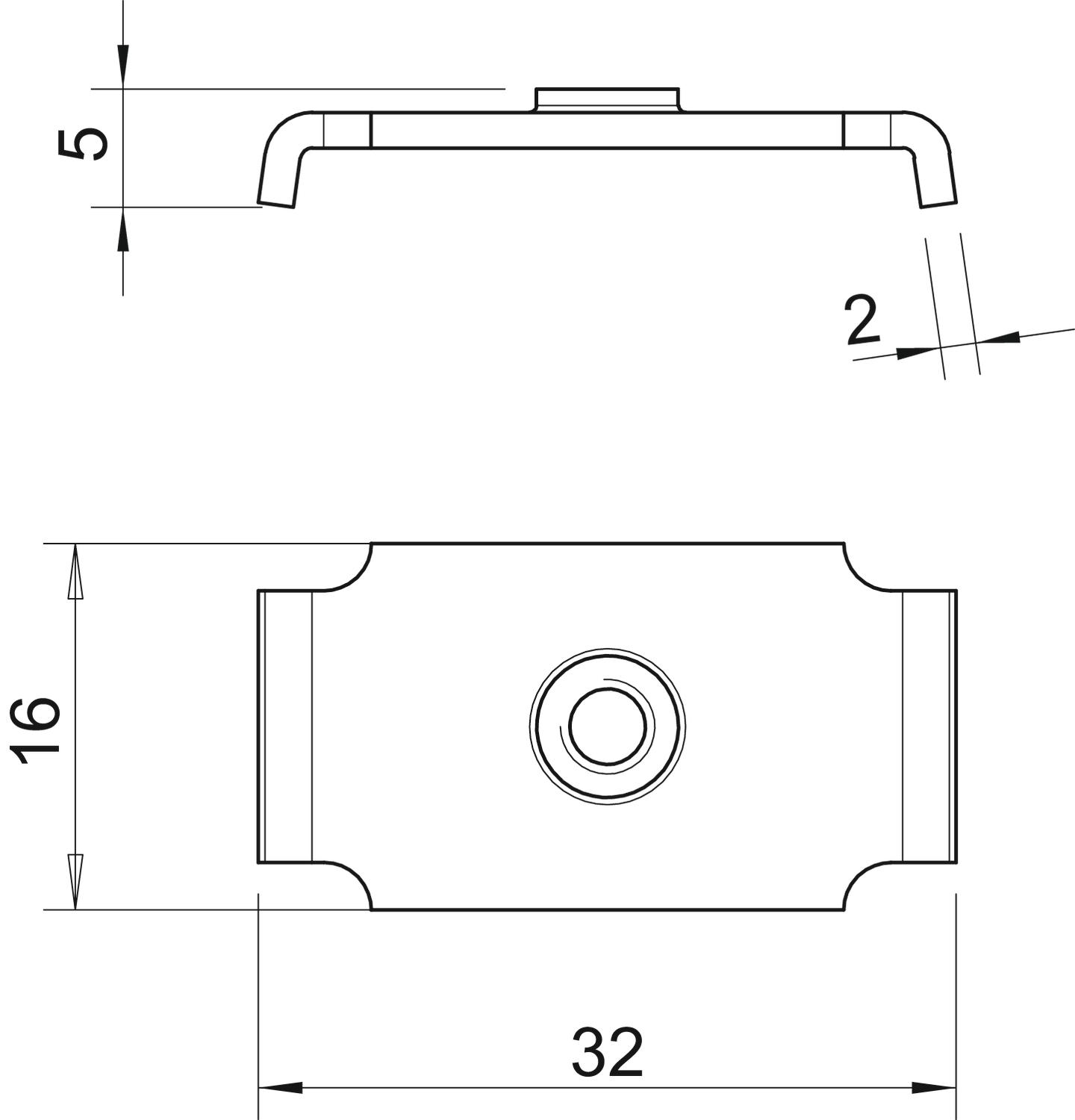

Scale drawing T 6012 M4 G / 1146335, 61.52 kB, jpg

T 6012 M4 G / 1146335
