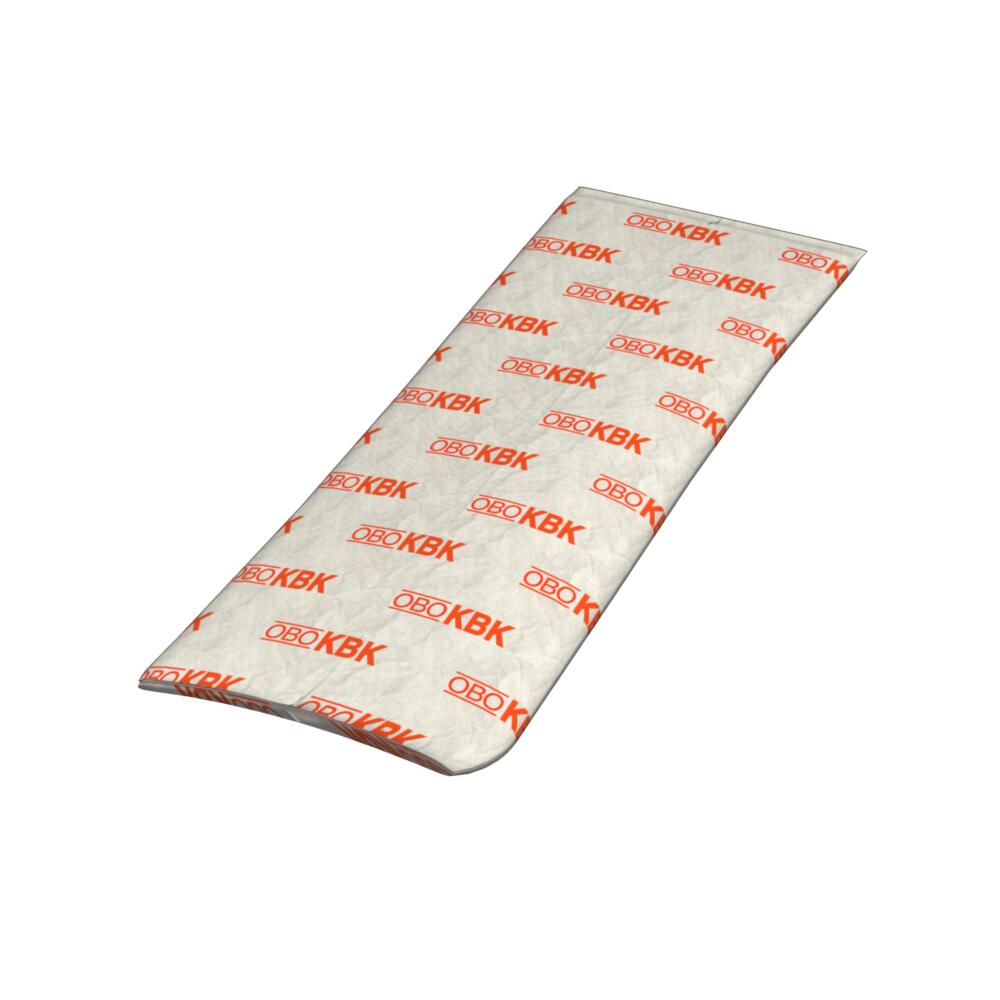

PYROBAG® fire protection cushion
Item no. 7202709 | EAN 4012196460991
- Product description
-
Product descriptionCable fire protection cushions made of dense, closely knit and mechanically solid glass mesh with a special filling. Free from mineral fibres, weatherproof and water-resistant. For interior application.
Can be stored for an unlimited period of time in dry, frost-free rooms.
-
- Technical data
-
Technical data

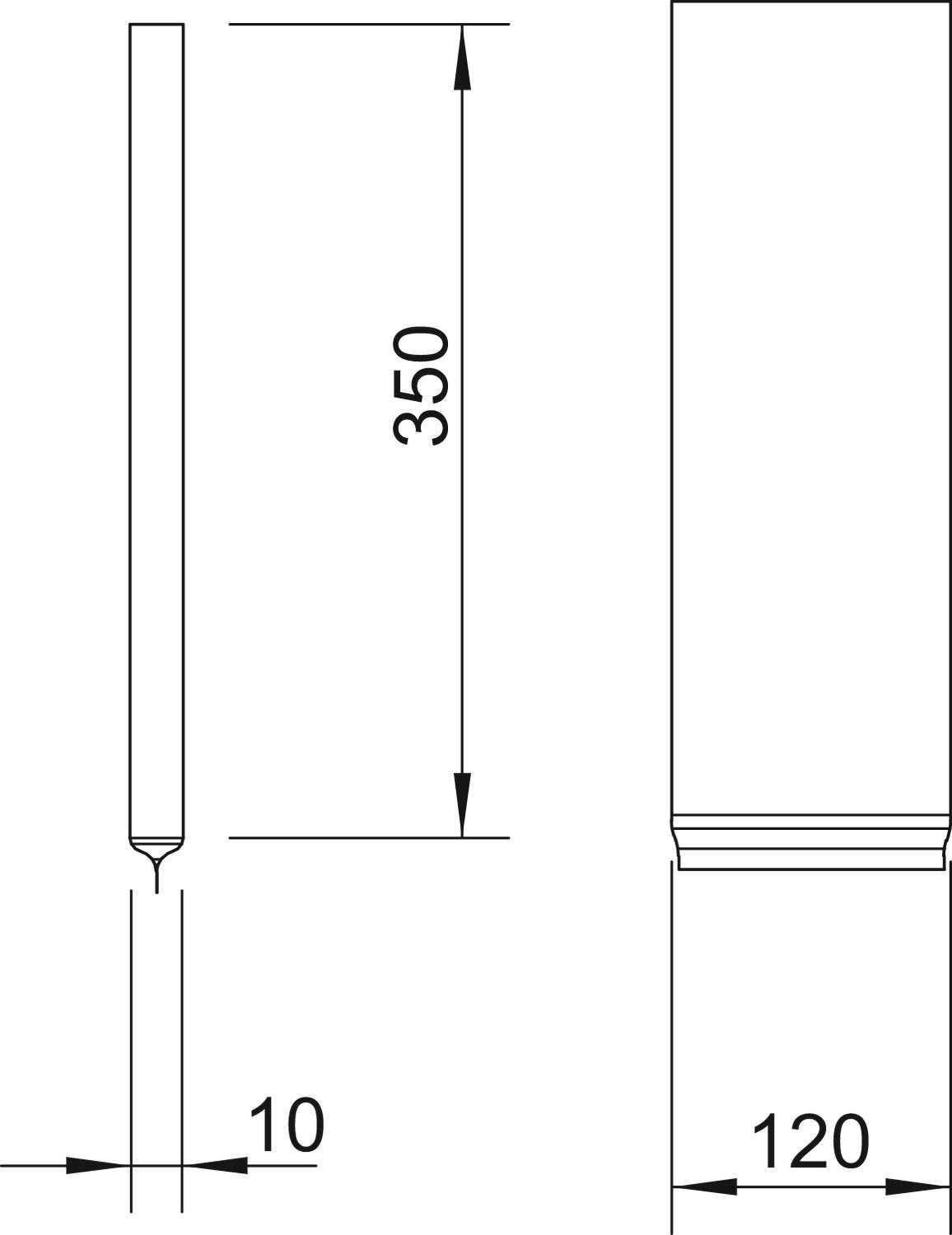

Accessories required yes Colour Grey Contents 0,18 kg Dimension 350x120x10mm Dimension B 120 mm Dimension d min. 10 mm Fire protection version Cushion insulation Height 10 mm Length 350 mm Material Glass mesh with special fire protection filling Shape Rectangular Width 120 mm - All types
-
System accessories
Products Types Item no.
Calcium silicate plate
KSI-P1 7202283
Calcium silicate plate
KSI-P2 7202904
Calcium silicate plate
KSI-P3 7202912

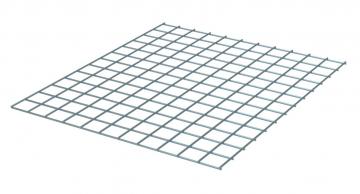

Steel wire grid
SDG-2 7202971
Identification plate DE
KS-S DE 7205425 Mounting accessories
Products Types Item no.
Support construction for insulations, with bracket
SKA 05 VZ 7202436
Support construction for insulations, with pendulum suspension
SKP 05 VZ 7202446 - Downloads
-
Data sheet KBK-1 / 7202709 , 0.17MB , pdfSafety data sheet KBK-1 / 7202709 , 0.11MB , pdfEU declaration of conformity KBK-1 / 7202709 , 0.11MB , pdfDeclaration of performance KBK-1 / 7202709 , 0.76MB , pdfREACH Declaration of conformity KBK-1 / 7202709 , 0.12MB , pdfRoHS Declaration of conformity KBK-1 / 7202709 , 0.12MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions PYROBAG® bag insulation , 3.13MB , pdf
