Ceiling bracket FT 181 | 180 | 0.6 | | 150 | 11 | zinc
morepic-1 morepic-2 morepic-3

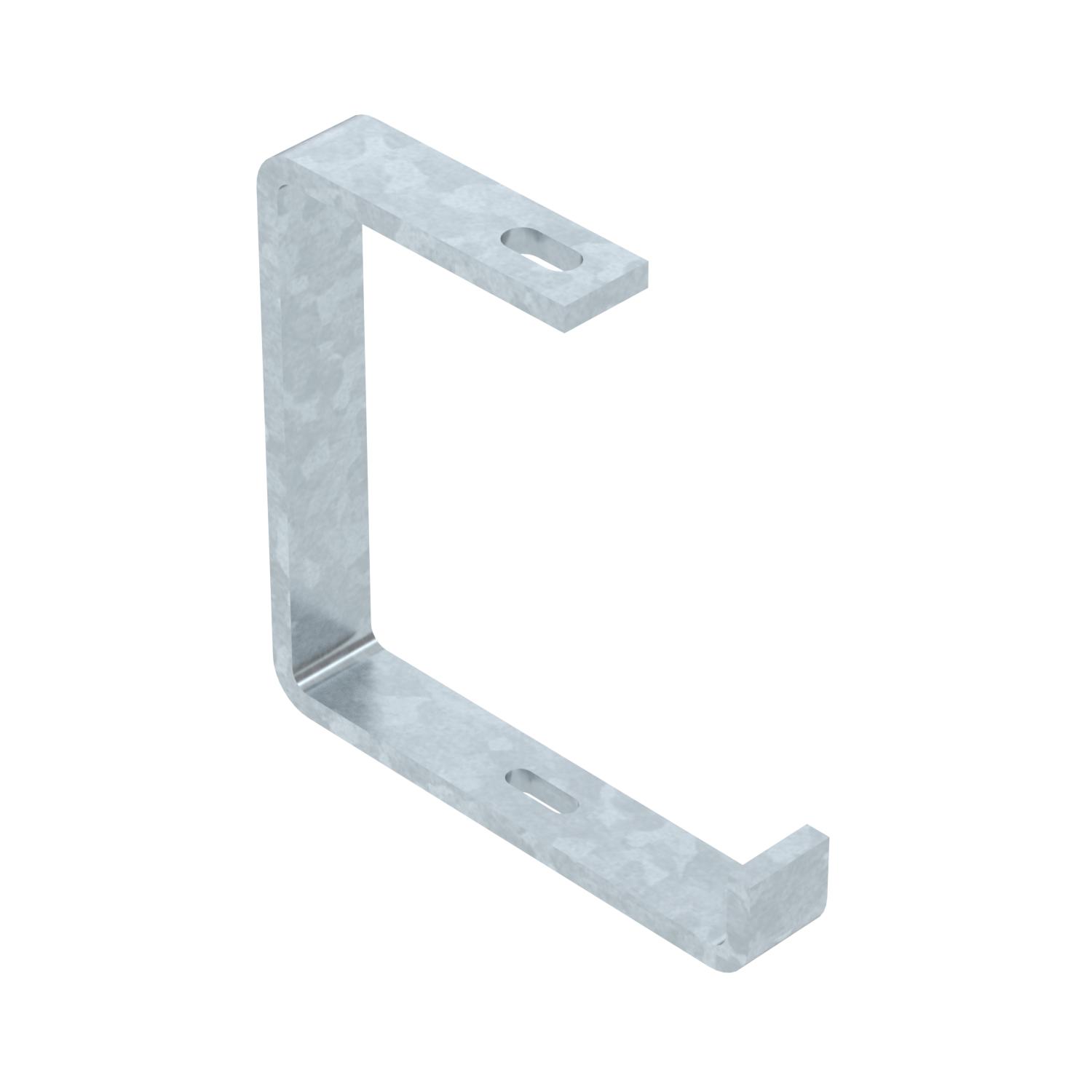

Ceiling bracket FT

Item no. 6363907 | EAN 4012196148219

180 mm
11 mm
zinc
Product description
Product description
Suspension bracket for cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm

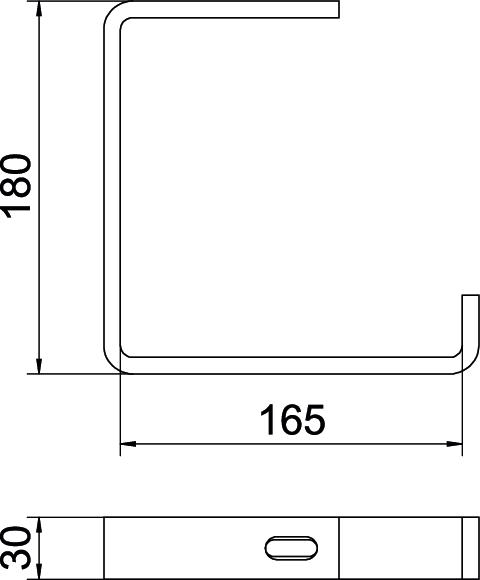

Technical data

Technical data

Adjustable no
CO2 Footprint (GWP) Cradle-to-Gate 1,8691 kg CO2e / 1 Piece
Colour zinc
Dimension B150mm
Dimension B 165 mm
F in kN ceiling 0,6 kN
for width max. 150 mm
for width min. 150
Height 180 mm
Hole diameter 11 mm
Length 30 mm
Maintain electrical functions no
Material Steel
Material thickness 8 mm
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Suitable for metric threaded rod 10
Surface Hot-dip galvanised
Tray fastening Screw-on
Version for Suspension bracket (C clamp)
Width 181 mm
All types

All types

Types Width Height F in kN ceiling for width max. Hole diameter Colour Item no.
AHB 100 FT 127 mm 180 mm 0.6 kN 100 mm 11 mm zinc 6363903
AHB 150 FT 181 mm 180 mm 0.6 kN 150 mm 11 mm zinc 6363907
AHB 200 FT 231 mm 180 mm 0.6 kN 200 mm 11 mm zinc 6363911
AHB 300 FT 331 mm 180 mm 0.35 kN 300 mm 11 mm zinc 6363938
AHB 400 FT 431 mm 180 mm 0.2 kN 400 mm 11 mm zinc 6363946
Accessories

Mounting accessories

Products Types Item no.
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x16 F 6406157
