Ceiling bracket 13 FT

Item no. / Types

Width

Height	130 mm

F in kN ceiling

for width max.

Hole diameter	11 mm

Colour	zinc

Product description

Product description

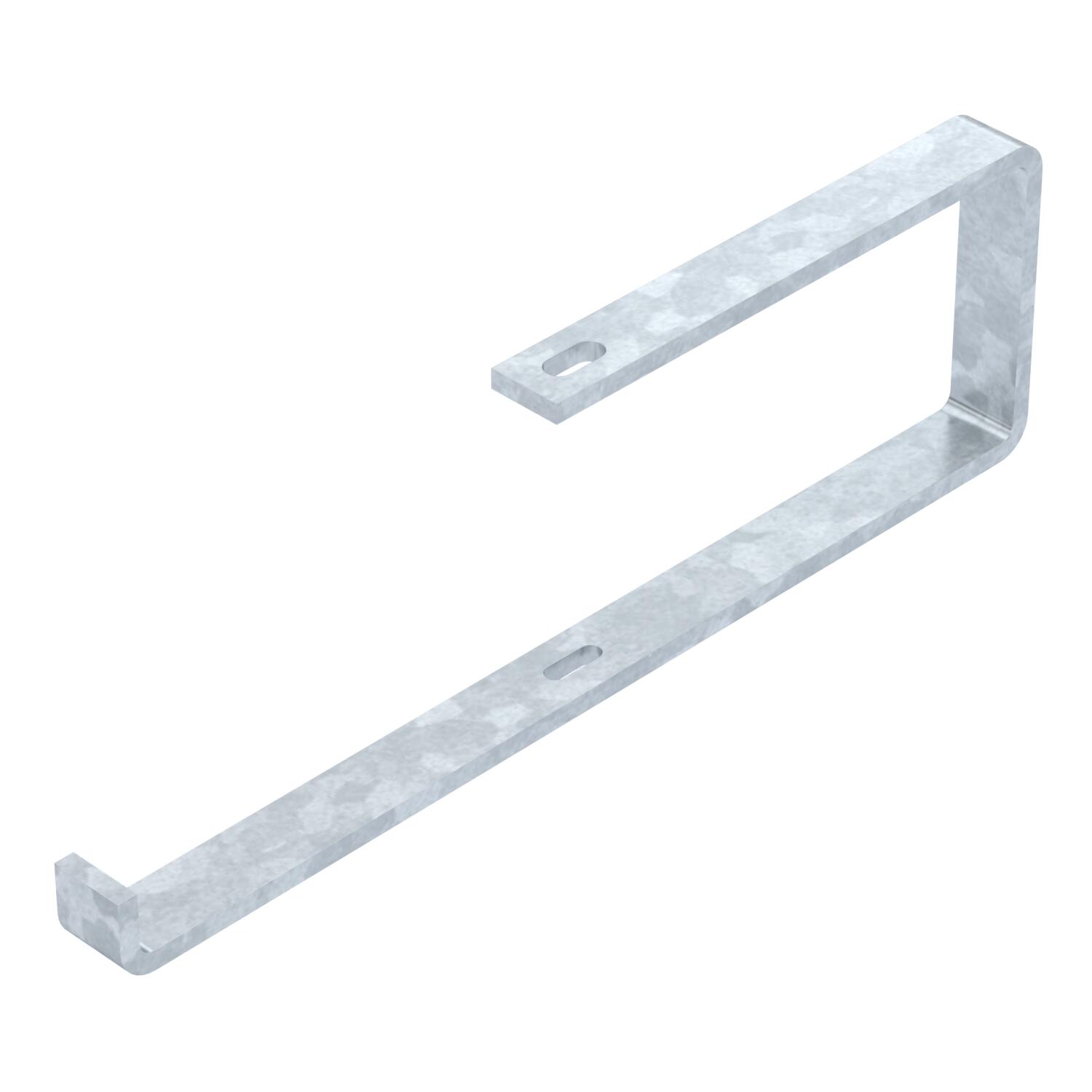

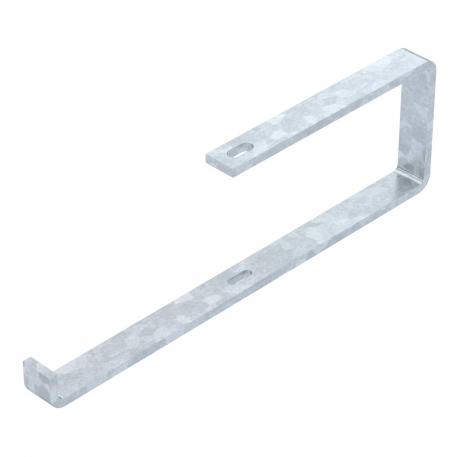

Suspension bracket for cable support systems to fasten directly under the ceiling or as a suspension with threaded rods M10.

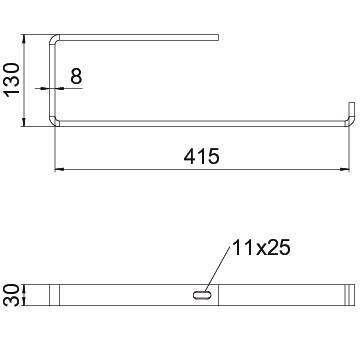

Technical data

Adjustable	no
Colour	zinc
Dimension	B400mm
F in kN ceiling	0,2 kN
for width max.	400 mm
for width min.	400
Height	130 mm
Hole diameter	11 mm
Maintain electrical functions	no
Maß W	415 mm

Material	Steel
Material thickness	8 mm
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Suitable for metric threaded rod	10
Surface	Hot-dip galvanised
Tray fastening	Screw-on
Version for	Suspension bracket (C clamp)
Width	431 mm

All types

All types

Types	Width	Height	F in kN ceiling	for width max.	Hole diameter	Colour	Item no.
AHB 100 13 FT	127 mm	130 mm	0.6 kN	100 mm	11 mm	zinc	6363904
AHB 150 13 FT	181 mm	130 mm	0.7 kN	150 mm	11 mm	zinc	6363908
AHB 200 13 FT	231 mm	130 mm	0.6 kN	200 mm	11 mm	zinc	6363912
AHB 300 13 FT	331 mm	130 mm	0.35 kN	300 mm	11 mm	zinc	6363939
AHB 400 13 FT	431 mm	130 mm	0.2 kN	400 mm	11 mm	zinc	6363947
