Angle profile WP30/35

Item no. 6373100 | EAN 4012196199754

3 mm
Product description
Product description

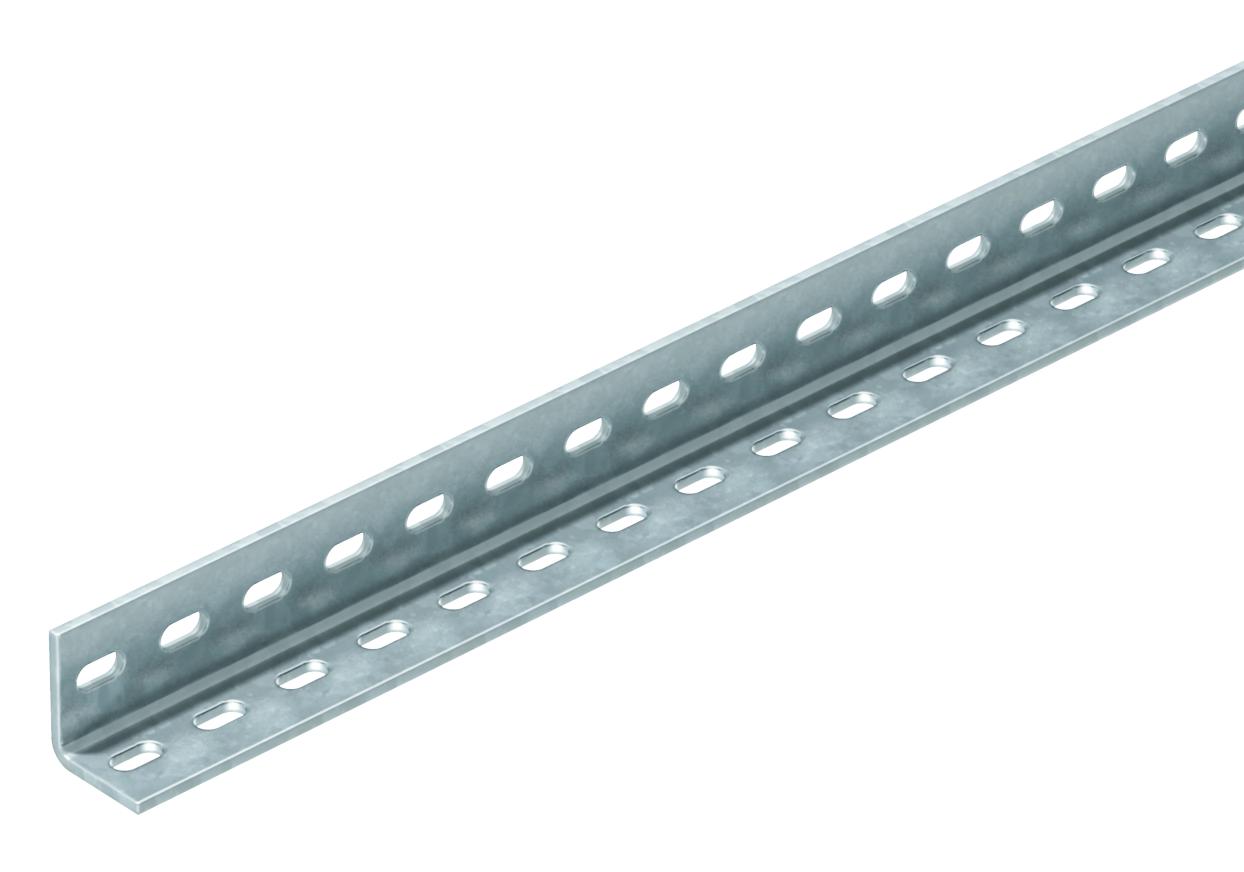

Perforated angle profile for creation of special support structures.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breakable no
CO2 Footprint (GWP) Cradle-to-Gate 5,6741 kg CO2e / 1 Piece
Colour zinc

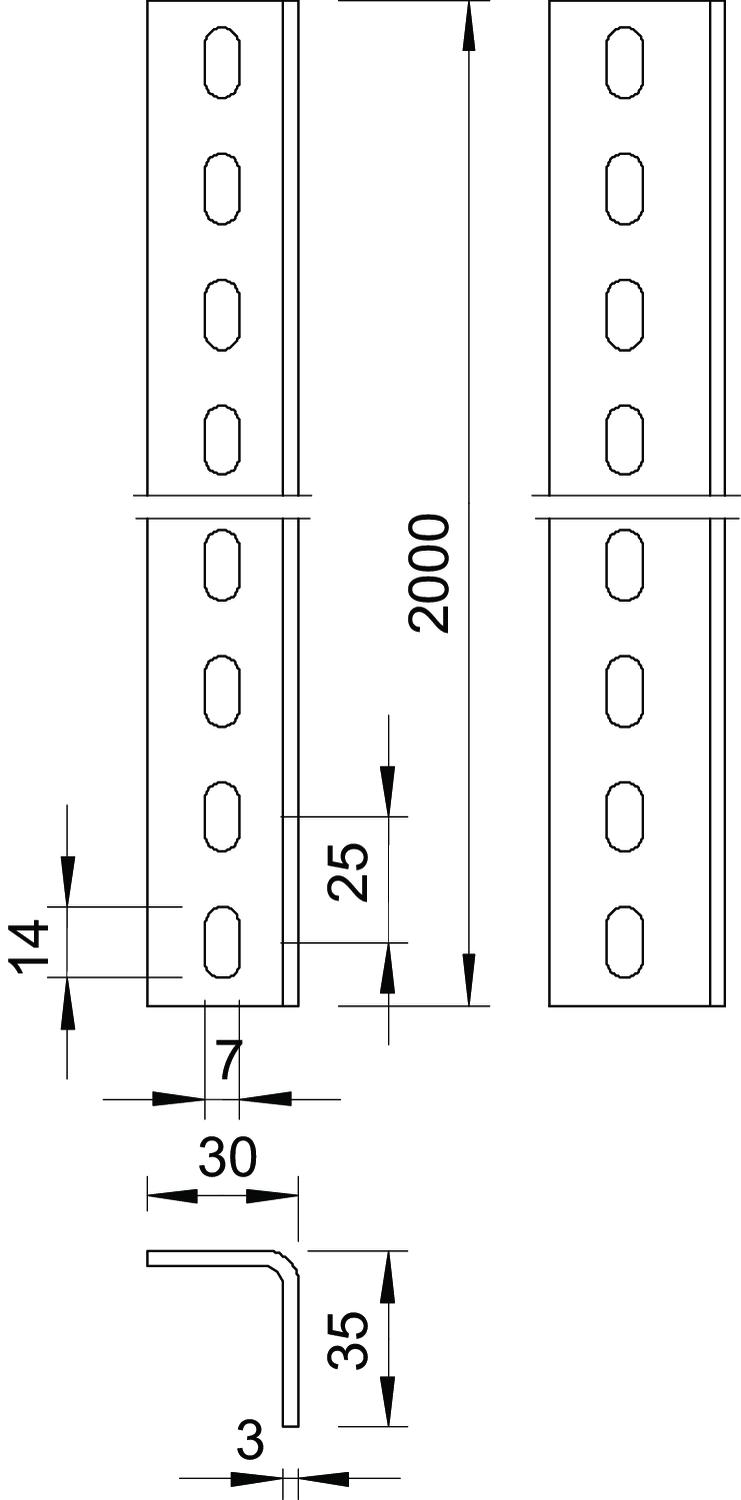

Dimension 30x35x2000
Height 30 mm
Length 2000 mm
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
Plate thickness 3 mm
Profile shape L profile
Side perforation yes
Static value A 1,38 cm²
Static value ly 1,82 cm
Static value lz 1,29 cm
Static value Wy 0,75 cm²
Static value Wz 0,59 cm²
Surface Hot-dip galvanised
Type of perforation 2 sides perforated
Version for Single profile
Width 35 mm
With toothing no
All types

All types

Types Length Plate thickness Item no.
WP 30 35 2000 FT 2000 mm 3 mm 6373100
WP 30 35 5000 FT 5000 mm 3 mm 6373103
